ARTINOX SHELVING

MODULAR SHELVING AND TELESCOPIC GN DRAWERS SUITABLE FOR COMMERCIAL USE

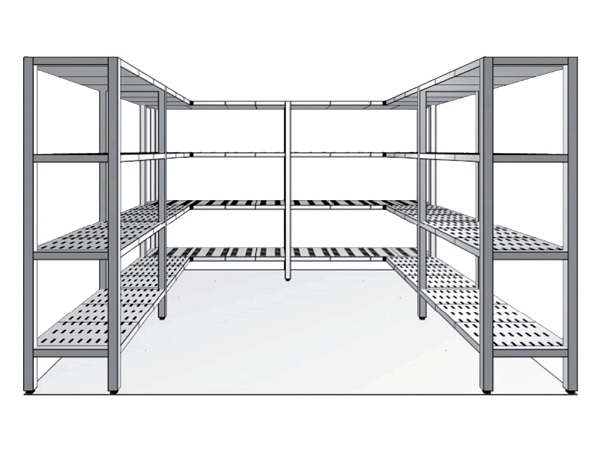

ECO INOX/COLOUR SHELVING

Sturdy and versatile shelving systems

  • Excellent stability
    Stability of the structure is provided automatically according to the load, therefore stabilising braces are not required.
  • Space optimization
    The elimination of the upright in the corner allows you to maximise the available space.
  • Sturdiness and quality
    Sturdiness of materials, quality of design and production processes, great care for details.

Customisable Service:

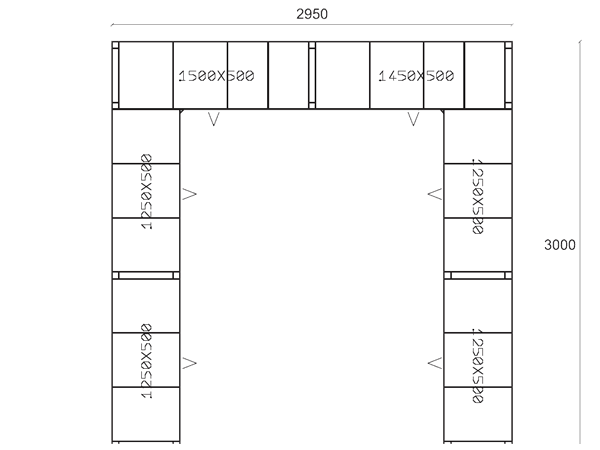

– Planning and design service with dedicated layout solutions for space optimisation.
– Installation Available.
– Large Scale Project Work



Modularity and Big Load Capacity

Max 1000 Kg

LENGTHLOAD
600 — 1000 mm250kg
1100 — 1500 mm200kg
1600 — 2000 mm150kg
Load capacity per shelf with evenly distributed weight

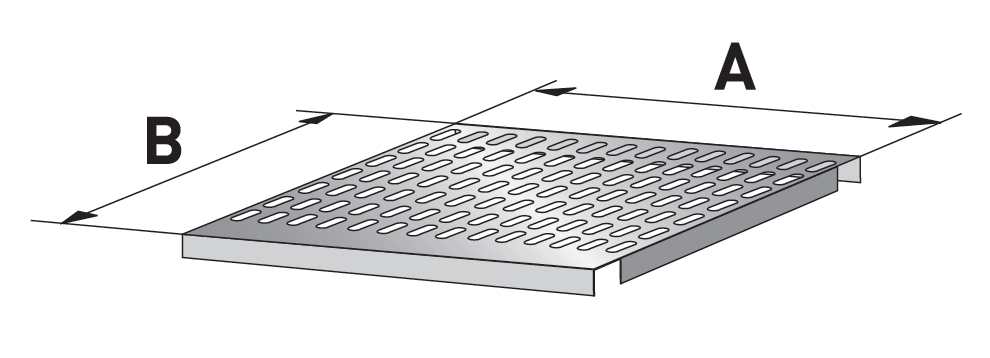

Perforated polypropylene panel

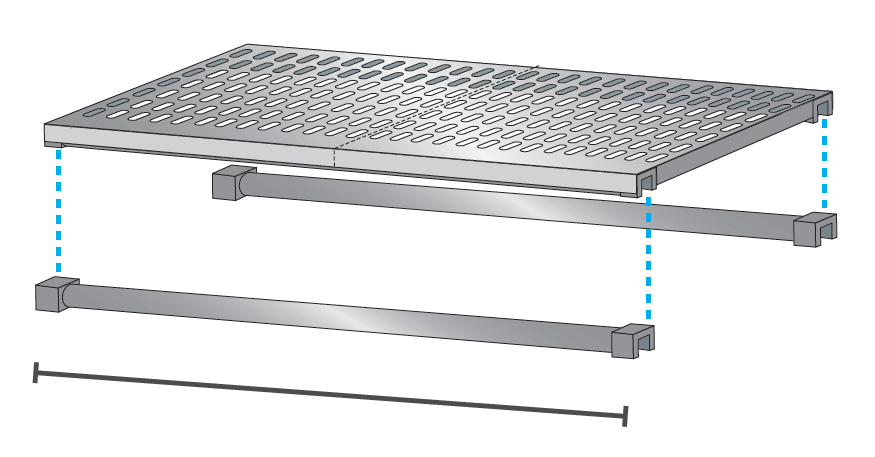

Polypropylene shelves (mm)

Zinc-plated, epoxy coated steel uprights with adjustable feet (Height mm)

TELESCOPIC GN DRAWER PACKS

  • 304 Stainless Steel
  • 3 drawers with s/s telescopic slides
  • Standard Handle
  • Lockable drawers with the same key for 3 drawers of the same cabinet
  • Adjustable feet:
     H= 170mm (gap from 140-190mm
